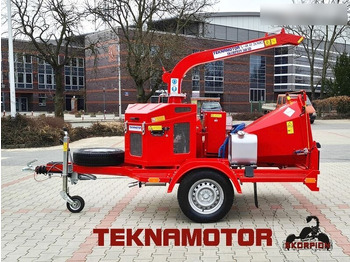

Нов Кршач на дрва Teknamotor Skorpion 160 SD

The chipper SKORPION 160 SD is the best choice for people involved in community service activities and for road companies; its high chipping capacity (the maximum diameter of worked branches is 160 mm) and small dimensions allow convenient use of the machine in urban areas and on roadsides during seasonal logging.

The high efficiency of this machine is achieved by the use of disc cutting system and BRIGGS&STRATTON Vanguard EFI 37 engine with power of 37 hp or KOHLER Command PRO EFI ECH980 engine with power of 38 hp or LONCIN LC2V90FD engine with power of 32,6 hp; a 2-cylinder, air-cooled petrol engine fitted with a mask. Optionally the propulsion system is a three-cylinder liquid-cooled diesel engine Kohler-Lombardini KDW 1003 with capacity of 24,5 hp or Kohler-Lombardini KDW 1404 (25 hp). In order to maintain many hours of continuous operation, the chopper is equipped with a 40 liter fuel tank.

The throat 285 mm wide and 165 mm high allows chopping branches, boughs and limbs (also leaves and needles), as well as round wood to diameter of 16 cm.

This model’s cutting system is made by a disc equipped with two cutting blades, co-working with two counter knives. The cutting knives life has been optimized by their double-sided sharpening, which allows them to be rotated by 180°, resulting in twice the length of their use. All the knives are made of appropriately selected tool steel and subjected to professional heat treatment. In addition, the chipper disc also fulfills the task of a fan and ejects the produced chips through the ejection tube, which can be positioned in any direction at a full 360° radius.

Its feed system consists of two pulling rollers, driven by separate hydraulic motors from a hydraulic pump mounted on the chipper.

Safety of the operator of a chipper is ensured by a cable safety switch attached, which - by pulling the cord in any direction - causes the hydraulic feed system to stop immediately. Unlocking the system takes place by releasing / unlocking the EMERGENCY STOP button to the work position.

The wood chipper equipped with an electronic No-stress system that automatically prevents overloading of the drive system by temporarily stopping the feed system. Editing the No-stress overload system allows you to easily change the machine settings and adjust them to individual needs. The program "thick wood", "thin wood" allows a quick change of the working mode of the chipper to suit the currently shredded material and more effective work of the wood chipper. This system has a built-in hourly meter.

The Skorpion 160 SD chopper has received European approval, which permits registration of the machine and traffic approval. It is equipped with overrunning brake and parking brake, modern LED traffic lights and a choice of spherical or eye catch.

Overall dimensions (LxWxH) 3700 x 1760 x 2250 [mm]

Weight 890 - 940* [kg]

Branch diameter 160 [mm]

No of knives 2 cutting + 2 counter-knife

Feeding speed up to 33 [running meters/min]

Chipping capacity up to 12 [stère meters/h]

Chip width from 9 to 11 [mm]

Feeding unit hydraulic feeder

Disk diameter 550 [mm]

Hopper dimensions (width x height) 285 x 180 [mm]

ENGINE TECHNICAL DATA

Engine model KOHLER Command PRO EFI ECH 980 / Briggs&Stratton VANGUARD EFI 37 / Loncin LC2V90FD

Engine cubic capacity 999 / 993 / 999 [cm3]

Power of engine 38,0 / 37,0 / 32,6 [hp]

Type of cooling -air

Type of fuel petrol

Fuel tank capacity 40 [l]

Start-up -electric

Engine model Kohler-Lombardini KDW 1003 / Kohler-Lombardini KDW 1404

Engine cubic capacity 1028 / 1372 [cm3]

Power of engine 24,5 / 25 [hp]

Type of cooling -liquid

Type of fuel Diesel

Fuel tank capacity 40 [l]

Start-up -electric

Equipment included:

-Counter of operating hours

-Spare wheel

-Adjustment of height of ejecting the chips

-Rotary chimney 360°

-No-stress system

Additional accessories on request:

-Extension of the ejection tube
